[Mk2] [Turbo] ST205 Charge Cooler - what else do I need?

[JeffD]

Bought myself a chargecooler including core, pump and pipework





A new Cinquecento radiator



and thermostat switch to "block the hole off"





Just wondeing wat else I need - Ive looed Toxo's list (see below) but unsure whether any o that is already in the bits ive been given eg. water bottle etc

Is this list what else I need to by? (ive edited the list as I see fit but original can be seen here

http://www.imoc.co.uk/forums/viewtopic. ... ight=st205

1 x Coolant Bottle - T08889-80002 (have I got one already?)
2 x Bolts to bolt down CC core - T91631-60816
2 x Long Throttle Body Bolts w/washer - T90119-08870
4 x Throttle Sock Bolts - T91511-B0825
1 x Throttle Sock - T17861-88480
1 x Accel. Bracket - T78024-88480
1 x Engine Hoist Hook - T12281-88480 (requires modifying)
2 x CC Pump Bolt - T90105-10393
1 x Throttle Body Support - T17871-88480
1 x CC Expansion Tank + pipework - T16650-74020
and a load of piping

[Neil_turbo]

Hi Jeff

I'm installing one for a friend at the mo,

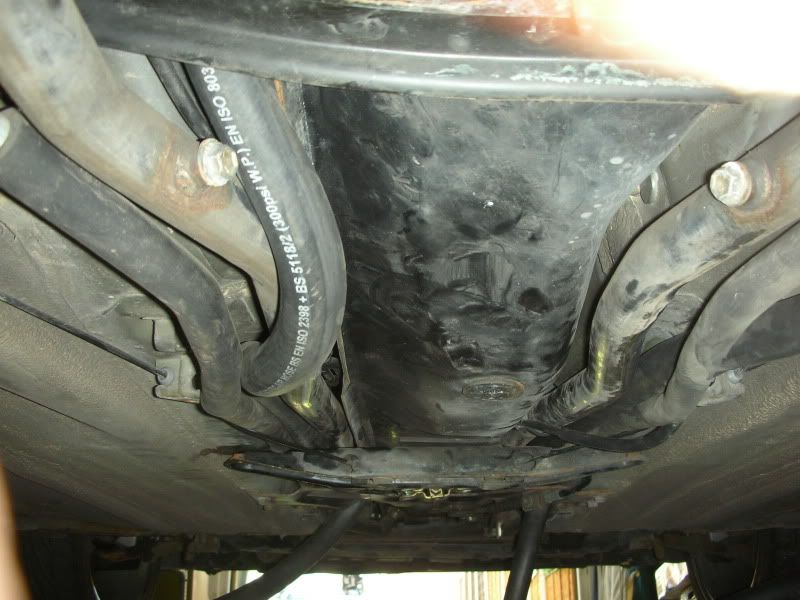

make sure you get good piping, something along these lines :



300PSI

you will also need 2 reducers for the cinqy rad to 19mm

[Neil_turbo]

Ps. its a lot easier with the piping if you remove the air con - the above doesnt

[Neil_turbo]

1 x Coolant Bottle - T08889-80002 (have I got one already?)

...
1 x Throttle Sock - T17861-88480
...

1 x CC Expansion Tank + pipework - T16650-74020

You definately have the expansion tank in the top pic, that should be all you need!

I can see you also have the sock attached aswell

[JeffD]

Right, based on what Neils just said I have the bits in bold already so only need the non bolded bits......?

1 x Coolant Bottle - T08889-80002 (have I got one already?)
2 x Bolts to bolt down CC core - T91631-60816
2 x Long Throttle Body Bolts w/washer - T90119-08870
4 x Throttle Sock Bolts - T91511-B0825
1 x Throttle Sock - T17861-88480
1 x Accel. Bracket - T78024-88480
1 x Engine Hoist Hook - T12281-88480 (requires modifying)
2 x CC Pump Bolt - T90105-10393
1 x Throttle Body Support - T17871-88480
1 x CC Expansion Tank + pipework - T16650-74020
and a load of piping

[Charged]

Jeff, do you mind if i ask how much and where you got the Fiat rad from?

ta

[JeffD]

Both the radiator and thermostat switch came from eBay Sellers

Radiator was £ £21.30 + VAT
Carriage £12.61 + VAT (if you live near newcastle go and collect!!!)
Total £39 incl VAT

from Advanced Radiators, Newcastle Tel: 0191 267 3312 so would try them direct. Ordered yesterday, received today and well packed so pleased :-)

Thermostat switch was £15 incl postage from some ebay person but TBH wouldnt mind knowing how much they are from Fiat as I dont think its genuine Fiat but aftermarket - not that I'm bothered as its just to fill the hole.

[JeffD]

They were only cheapso have ordered from Toyota:

2 x 91631-60816 £0.98 each
2 x 90119-08870 £1.42 each
4 x 91511-B0825 £0.76 each
2 x 90105-10393 £0.98 each

These were a bit more pricey so looking for 2nd hand items...

78024-88480 Accelerator bracket £13.47
17871-88480 Throttle Body Support £31.17
12281-88480 Engine Hoist Hook £35.38

If someone could put a pic up of the last 3 items I#m looking for it would be much appreciated :-)

[BLZ-8027]

They were only cheapso have ordered from Toyota:

These were a bit more pricey so looking for 2nd hand items...

78024-88480 Accelerator bracket £13.47
17871-88480 Throttle Body Support £31.17
12281-88480 Engine Hoist Hook £35.38

Do you have any pics of what you need ?

[BLZ-8027]

double post sorry

[JeffD]

I'm afraid I dont, hence the post because I dont know what all the bits look like so dont know whether they were included with what I was given! Feel like a newbie LOL

[BLZ-8027]

I'm afraid I dont, hence the post because I dont know what all the bits look like so dont know whether they were included with what I was given! Feel like a newbie LOL

Theres some pics on here that might help

http://www.awpish.co.uk/motor/tubby/chargeCooler_2.html

ill have a look also

[JeffD]

I can make out accelerator bracket thetre but not the other 2 bits....

Good link though :-)

[BLZ-8027]

I can make out accelerator bracket thetre but not the other 2 bits....

Good link though

This throttle body was fitted to my spares car ,which had a chargecooler fitted
dont know if its different to standard ? any good to you?

[JeffD]

I dont know! LOL Not really sure what what I'm after should look like. The part no says "throttle body support" rather than "throttle body". mmmmm..

[BLZ-8027]

I dont know! LOL Not really sure what what I'm after should look like. The part no says "throttle body support" rather than "throttle body". mmmmm..

I didnt mean the whole thing ,just the accelerator bracket

[JeffD]

Just re-read toxs thread and theres pics on there:

Engine hanger bracket




Throttle body support and accelerator bracket

[Steve-O 2007]

is the throttle body support needed? Im doing this soon. Think Im going to mount the radiator and water pipes first then have a weeks rest and leave the rest for another weekend

[mazmilly99]

^^^ same question as steve-o

[Steve-O 2007]

also the engine hanger bracket isnt realy needed so dont think Im going to bother with that, I will just bolt the old one back on if I need to use it.
