[Mk2] [Turbo] RMR Manifold & wiring clean up

[tarmac terrorist]

Right have had the RMR manifold sitting in doors since before christmas so thought it was time i started this project, now as soon as i started this project toyota called recalls for T/pedals so have been doing late nights & all day saturdays to get them done ,which will be going on for a few months yet so project as had to go on hold again i hope to get this finished for box hill but thought i would post some pics of work so far will update when i can

bag of a spare rev 3 wiring loom


wiring loom cut up




old manifold removed


new manifold fitted which i had my mate cut & rotate 180 for us


injector wiring run




covering loom


BBK t/body fitted


alternator main power run through boot & back out bulkhead


alternator wiring run under manifold


this is the story so far, next to come is O2 sensor wire run round bulkhead,diagnostic plug mounted in boot,vacuum pipes run, intake pipes made up,clean up & respray of some parts, water inj refitted ,car remapped etc etc it never ends will carry on when i get a chance

[Bry]

Looking good mate, but hurry up spring is nearly here

[RyanRs]

Bimy nick! look at all that spaghetti! no wonder your taking so long to put it back together! lol. Looking good tho mate.

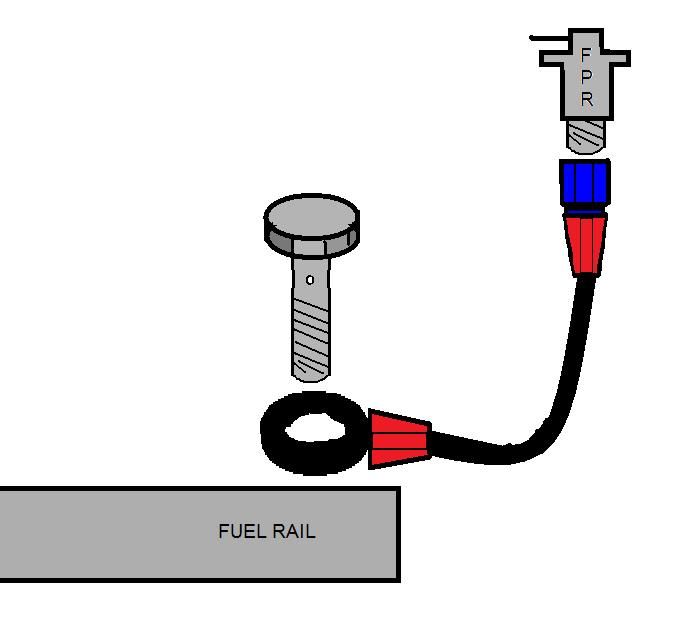

I think the easiest/cheapest route for solving your FPR issue is to fit it remotely. purchase a banjo and bolt to fit in your rail where the FPR goes, then a small section of hose and a female hose end but with thread to suit the FPR.


I would say get a bano to AN-06 then a small length of -06 hose, then a -06 hose end with a fine metric thread for the FPR (i think its fine metric, dont take my word for it) Bob hatton can sort out all your hose needs, i have purchased many goodridge bits from him.

Here is the banjo you would need..

For the actual banjo bolt, if its too much hassle finding a AN one, im sure the bolt is the same as the one on the other end of the fuel rail and the same as the ones in the fuel filter.

You could prob do it with push on fittings, but it will only save you about a tenner i reckon. might aswel do it properly.

[bobhatton]

I know what you need, just give me the length of hose you need and I will sort out a price.

Bob

[tarmac terrorist]

I know what you need, just give me the length of hose you need and I will sort out a price.

Bob

sweet thanks guys will sort out the length in the next couple of days bob

[tarmac terrorist]

right update of project been on it all day saturday & half of today here goes

wiring loom almost comlpetly done in boot



O2 sensor wiring gone from rocker cover



O2 sensor wiring runs round inner wings now with abs sensor wire



ABS through into boot (did not need to extend this wire)





coil pack ,injector resisters removed & in boot



O2 sensor wire & waste gate pipes going through heat shield

[Martin F]

Looks the business mate, job well done me thinks

[Steve Horrocks]

WOW! Some super work there dude!

[GTS GAV]

very nice dude coming along nicely, were may i ask did you buy the RMR inlet mannifold and throttle body there on my to buy list

[tarmac terrorist]

thanks guys still a lot to do, r/cover & bulkhead need respraying strut brace needs respraying & clean up engine bay of grime to finish it off, also want to make a cover so when you open the boot you only see the intercooler core hope to get it done for boxhill meet but not shore at the moment

as for the RMR manifold that came from RMR them selves it was the last of three , it faced forward which me friend cut & rotated 180 for boot mount & the BBK 75mm t/body came from summit racing (thanks bry for sorting all my stuff ) have now also ordered a moroso alloy sump from them

[steve]

looks good Nick

[RyanRs]

STEVE! your still alive!!

[steve]

STEVE! your still alive!!

just about, mate

i've just lost interest in my 2 a bit recently, think i need the turbo on and to finish it all off

[RyanRs]

think i need the turbo on and to finish it all off

I 100% agree! Summers coming mate, be nice to have a little 'Crew' to drive to the shows with

[tarmac terrorist]

right some more update pics














also some pics of me morosso drag sump









almost there now just got to repaint a few bits, make throttle cable bracket, reshim valve buckets ,dial cams in ,800cc inj back on & a remap

[DaveB19]

Hi mate, lookin good. I'm almost finished my build (on and off for a year). Also have a Moroso sump. Dont know if its my manifold throwing out the alignment or the sump being bigger but i've got to make a new downpipe, nearly from scratch, proper nightmare getting so close to the end of the build then having to start a fabricating stuff from scrtch. Just a heads up if you plan on getting out in the car soon. Good luck anyway, engine looks awesome
Dave

[tarmac terrorist]

Thanks for the heads up mate knowing my luck mine will not fit either ,just out of interest what down pipe was you running I'm on a Aussie tubular manifold with KO Racing turbo kit & down pipe

[DaveB19]

ATS down pipe with Garrett GT35 turbo with Aussie manifold. Couldnt get downpipe on to turbo, never mind tryin to line it up with the mid section. Ended up cutting about 3 inches out from turbo, horizontal, where normal downpipe turns downwards. Need to re-weld a 90* turn down, towards passenger door, another 90* turn there, down to mid section. Hopefully wont screw flow up too much, hence thats why i've bought Chris's straight out vent exhaust. Will use it for quarter mile runs etc.

[tarmac terrorist]

bit of an update morosso sump is now on & exhaust clears thankfully 1 less job to do
i have also resprayed strut brace plates metallic black instead of original blue, FPS is also fitted, all thats really left to do now is make up throttle cable connection, dial cam timing in reshim valve buckets, 800cc injectors in & a remap
here are some update pics

coil lead coming from boot




fuel pressure regulator

[tarmac terrorist]

a bit of an update

brake vacuum pipe before



brake vacuum pipe after covered with vacuum pipe simple mod but think looks a lot better
