Will do

Currently I use 2 of the 7MGTE coil packs using a wasted spark setup from my AEM. I believe that the individual 7M coils are the same as the 4AGZE DLI just there are 3 of them in total and the bracket to house them is different as a result. I also used two ignitor packs from single coil st182 Celica...

Yea I found out the hard way,

It turns out that it seems to only be common knowledge in the states and aussie land I found out after much searching.

Good luck with the build.

Hi, Just read your posts, I love the fact you want to keep the 4age, I feel the same way about mine. On my engine build I ended up using Pauter X-beam rods with Arias pistons. The reason for using X-Beam was due to the original H-Beams ones I bought hitting the block when turning the crank. Rather t...

Hi again, Thanks for all the replies, happy with the oil choice now, thanks for resting my mind on that. I fired the car up this morning, first chance ive had in a while, i left the toyota o-ring in and warmed it up without the oil cap on. i thought this would make a huge temporary breather, and no ...

Thanks for the quick reply, didnt think about adding a breather tap off to the exhaust cam cover, will try that i think. ive always wondered why the 4age dosnt have one on each like alot of engines and it does seem to breath quite heavy. if that fails ill look for a thicker o ring, just seems odd th...

Hi, Im after some advice from anyone with experience from running a 4agte setup or anyone with high spec 4ag engines. i finished building my engine about this time last year run it in on mineral oil and then before having a very basic road map changed to 15w 50 mobil 1 fully sythyetic oil. Due to a ...

I done away with the T-VIS system on my 4AGTE, i had the face of the inlet manifold built up and machined flat agin so that it mated straight onto the head. i didnt want it in the way for running high boost etc. when i was running in my engine we made the ignition map very safe so as not to risk any...

Wow!

Thanks very much, im in your debt. i cant believe youve got one lying around.

thanks, please could you PM me when you get it off. What would you like for it?

Thanks,
Rob

Yes that is the piece, i need only the part that bolts onto the gearbox i think.
Thanks!

Hi just wondering if anyone could help, i have a supercharger mr2 gearbox and everything else that i need to put this in my MK1 instead of the 4age gearbox but i have noticed that the rear most mount is missing. i assume that the 4AGZE uses the same mounting positions on the car but i cant use the m...

Thanks,

ive used a cast manifold ment for the corrola, had to make up a spacer between the manifold and the turbo to lift the turbo higher because it fouled with the cylinder head.

Cheers aw11 rally. By the way your car is very cool. And im already thinking of stealing your gearbox idea oneday if you dont mind. im scared of snapping driveshafts etc. my car is running an AEM ecu. it is ment for a MK2 but i made up my own wiring loom from scratch using MK2 ecu plugs. thanks for ...

Hi everyone, Its taken me 2 and a half years but my 4AGTE project is now finished! no power figures yet until the end of the month when full race map is done on the rollers. already makes boost at 2500rpm half throttle. not sure how to post pictures so check out the garage photos. hope you all enjoy...

aw11 4agte in southampton


http://i210.photobucket.com/albums/bb30 ... 008029.jpg

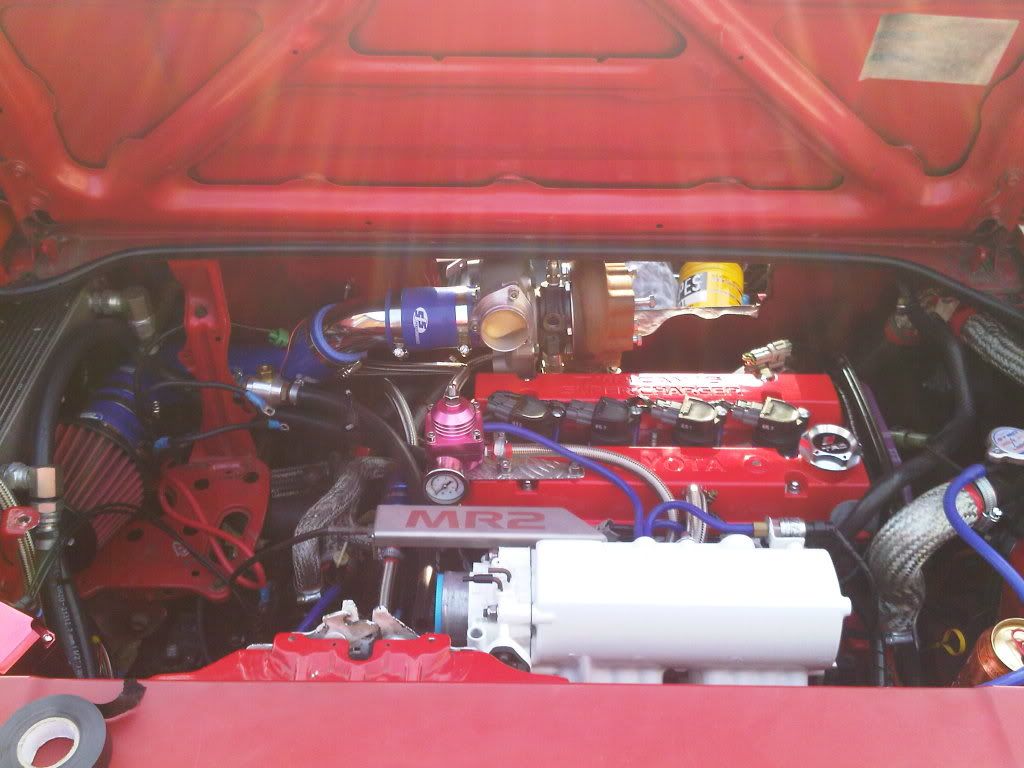

http://i210.photobucket.com/albums/bb30 ... 1-1600.jpg

Hi, im fitting a 4agze gearbox into my mk1 but dont yet have the superchager driveshafts, is there an alternative i can use?

Thanks

No worries, Just found some pin outs on two brutal in their great archive. looks like i might have a better lok at thier site lol incase anyone else needs them in the future tho: G1 = Cam sensor = A15 G2 = TDC = A2 NE = Cranksensor = A1 G- = Timing Ground = B16 This is using a revision 1 turbo AEM E...

Hi, Im in the middle of wiring my cusom loom to my AEM ECU. I have a cam sensor from a later 4agze which is also the same as on the Silver and black top engines i belive. I have found after much digging on the net, that the 4 wires are: G1 G2 NE G- does anyone know what any of these are? any help wo...

Hi, i was wondering if anyone can help me out. I do not own a mk2 turbo but am using an AEM ECU for a 1991 - 1992 model on my project mk1 mr2. the AEM ecu is a plug and play fit to the correct model and has 4 plug connections. Are there only 3 on the standard ecu? any help would be appreciated. Than...

Its hitting the tow loop on the bumper, mine did.

go back to the join between the back box and the downpipe and twist the joint to piont the backbox down a little more. This should solve it.
