hey people, Recently i have bought a old Subwoofer for a MK1.
butt the connector is cutt of (was broken)
The woofer inside is also broken, the rubber is dryed out.
Butt i have a woofer that fits
So ihave take a look in the wiring diagram
and i found this on the internet:
Butt as you can see the colors doesn't match
I already take a look @ Jimi's page
http://myweb.tiscali.co.uk/jimilawson/V ... plugs.html
Butt the same colors, bummer!
So does anyone know wich color is what?
Subwoofer MK1
Moderators: IMOC Moderators, IMOC Committee Members
Re: Subwoofer MK1
Hi Rob,
I was told that these are a waste of time and effort.
So, get one of these. I did and it is a great bit of kit.
http://cgi.ebay.co.uk/Alpine-SWD-1600-C ... 1c14a715e3
Bod
I was told that these are a waste of time and effort.
So, get one of these. I did and it is a great bit of kit.
http://cgi.ebay.co.uk/Alpine-SWD-1600-C ... 1c14a715e3
Bod
Re: Subwoofer MK1
Hello Bod,
I believe that this set up sounds better.
But, I would like to be as original as possible.
Everything possible is installed on that car, (For Dutch standards)
Only the airco is not installed, and the subwoofer.
And just the subwoofer seems to me a nice upgrade, although it should be linked to a newer radio
I believe that this set up sounds better.
But, I would like to be as original as possible.
Everything possible is installed on that car, (For Dutch standards)
Only the airco is not installed, and the subwoofer.
And just the subwoofer seems to me a nice upgrade, although it should be linked to a newer radio
Re: Subwoofer MK1
Maybe this wil help a bit,
And from the inside:
And the wire colors doesn't make sense to me.
The colors on the printed circuit board are described.
So i still don't know anything?
And from the inside:
And the wire colors doesn't make sense to me.
The colors on the printed circuit board are described.
So i still don't know anything?
Re: Subwoofer MK1
Just dug one of my subs out of the garage and had a look and it's quite different. Mine only has 5 wires going into the plug whereas yours has seven.
Does your car have the connector under the seat for the sub? If so what does it look like? The connector on my sub is only a 6 pin connector (With one pin not used) so it appears that Toyota may have used more than one connector type for these.
/EDIT Just had a poke around in the EPC and it seems that there are different part numbers for US subs compared to european LHD cars. No idea why they would be different, seems you have the US one based on the part number so you might have more luck looking at wiring diagrams on US sites.
Does your car have the connector under the seat for the sub? If so what does it look like? The connector on my sub is only a 6 pin connector (With one pin not used) so it appears that Toyota may have used more than one connector type for these.
/EDIT Just had a poke around in the EPC and it seems that there are different part numbers for US subs compared to european LHD cars. No idea why they would be different, seems you have the US one based on the part number so you might have more luck looking at wiring diagrams on US sites.
Re: Subwoofer MK1
how much do you pay for the wee Alpine active sub?
Re: Subwoofer MK1
bobbyh wrote:how much do you pay for the wee Alpine active sub?
Around £125 I think. Nice bits of kit, I have one, although it has never been fitted.
If you can't see the angle, you're in trouble.
Re: Subwoofer MK1
Boddney wrote:
I was told that these are a waste of time and effort.
Yes, they are.
What are you hoping to achieve by fitting this apart from a distorted farting noise ? Remember this is early 80's technology...
If you can't see the angle, you're in trouble.
Re: Subwoofer MK1
@Kaiowas:
Thanks.
I already have taking a look @ one american site.
And found something. (not complete) just keep searching
@Ollie@SkyInsurance:
One MK1 stays original as possible.
There are no extra speakers mounted, only replaced speakers.
In the dashboard (4 inch) and behind the T-tops (3,4 inch)
And the sound is still crappy
Ohw and the radio is replaced.
So i like to add an original (extra) option to the car.
I will make a picture what i did with the other MK1 on the sterio eqiupment.
Thanks.
I already have taking a look @ one american site.
And found something. (not complete) just keep searching
@Ollie@SkyInsurance:
One MK1 stays original as possible.
There are no extra speakers mounted, only replaced speakers.
In the dashboard (4 inch) and behind the T-tops (3,4 inch)
And the sound is still crappy
Ohw and the radio is replaced.
So i like to add an original (extra) option to the car.
I will make a picture what i did with the other MK1 on the sterio eqiupment.
Re: Subwoofer MK1
Rob,
I have a Kenwood Head Unit in mine linked to 100watt rear speakers and 150watt front speakers all of which are in the origional holes and origional size and an active sub which is under the seat and all are Alpine and basically invisible.
This will be the look you also have but you won't have the sound quality with the Mk1 sub.
I got mine for £53 + p&p on ebay.
Food for thought.
Bod.
I have a Kenwood Head Unit in mine linked to 100watt rear speakers and 150watt front speakers all of which are in the origional holes and origional size and an active sub which is under the seat and all are Alpine and basically invisible.
This will be the look you also have but you won't have the sound quality with the Mk1 sub.
I got mine for £53 + p&p on ebay.
Food for thought.
Bod.
Re: Subwoofer MK1
True!
But i already did this to 1 MK1
Replaced the speakers behind the t-tops,
put some extra speakers in the doors
A wooferbox in the middle with 2 (5'') 13cm speakers, and the filters are also in the wooferbox.
And the tweeters (of that compo set) on the dash
and put a tiny pioneer amp under the drivers seat.
sounds good!
But dont forget to put some cushioning material in the wooferbox.
Otherwise it sounds hollow
But i already did this to 1 MK1
Replaced the speakers behind the t-tops,
put some extra speakers in the doors
A wooferbox in the middle with 2 (5'') 13cm speakers, and the filters are also in the wooferbox.
And the tweeters (of that compo set) on the dash
and put a tiny pioneer amp under the drivers seat.
sounds good!
But dont forget to put some cushioning material in the wooferbox.
Otherwise it sounds hollow
Re: Subwoofer MK1
Its alive!
Here is the sub on the workbench:
And the sound of the old woofer:
http://www.youtube.com/watch?v=tY1mcyAqurw
Afer that i put an old woofer that fits, i found one in the attic
http://www.youtube.com/watch?v=V6Fjt8a-zR0
I didnt expect a super sound.
(I expected nothing much)
But I found it a bit hollow sounding, so take one speaker input apart from the sub, and it was a lot better.
I.e. the pluses and minuses of the speakers were not properly connected.
So just try it, to put wire to wire if the sound becomes a bit better. and finally its better en certainly not hollow
Result:
http://www.youtube.com/watch?v=opciS1sL4Zg
Its not perfect, now am i searching for a 4'' woofer.
This is how the subwoofer is gonna be conected:
Bleu = 12 supply
Green = swiched 12V supply
Black = ground
Red = speaker left +
Gray = speaker left -
Yellow = speaker right +
Brown = speaker right -
Thanks for thinking along
Here is the sub on the workbench:
And the sound of the old woofer:
http://www.youtube.com/watch?v=tY1mcyAqurw
Afer that i put an old woofer that fits, i found one in the attic
http://www.youtube.com/watch?v=V6Fjt8a-zR0
I didnt expect a super sound.
(I expected nothing much)
But I found it a bit hollow sounding, so take one speaker input apart from the sub, and it was a lot better.
I.e. the pluses and minuses of the speakers were not properly connected.
So just try it, to put wire to wire if the sound becomes a bit better. and finally its better en certainly not hollow
Result:
http://www.youtube.com/watch?v=opciS1sL4Zg
Its not perfect, now am i searching for a 4'' woofer.
This is how the subwoofer is gonna be conected:
Bleu = 12 supply
Green = swiched 12V supply
Black = ground
Red = speaker left +
Gray = speaker left -
Yellow = speaker right +
Brown = speaker right -
Thanks for thinking along
-
- Posts: 384
- Joined: Fri Feb 04, 2005 8:44 pm
- Location: Northern Ireland
- Contact:
Boom
Got these yesterday in 'B&M Bargains' for £20. Sound isn't bad hooked up to an old Kenwood multichanger I use for testing. Not really sure they'll fit anywhere though, but they light up blue if you feed them a 12 volt supply...
The 5-pin version of the sub-woofer wiring has the BLUE wire connected to a switched 12-volt supply and the other 2 pairs are fed directly from the front speaker connections. You can take an earth from the mounting bolt for the Toyota sub-woofer on the floor.
Every diagram I could find showed the 7-pin version, very strange.
The 5-pin version of the sub-woofer wiring has the BLUE wire connected to a switched 12-volt supply and the other 2 pairs are fed directly from the front speaker connections. You can take an earth from the mounting bolt for the Toyota sub-woofer on the floor.
Every diagram I could find showed the 7-pin version, very strange.
-
- Posts: 384
- Joined: Fri Feb 04, 2005 8:44 pm
- Location: Northern Ireland
- Contact:
Bass box

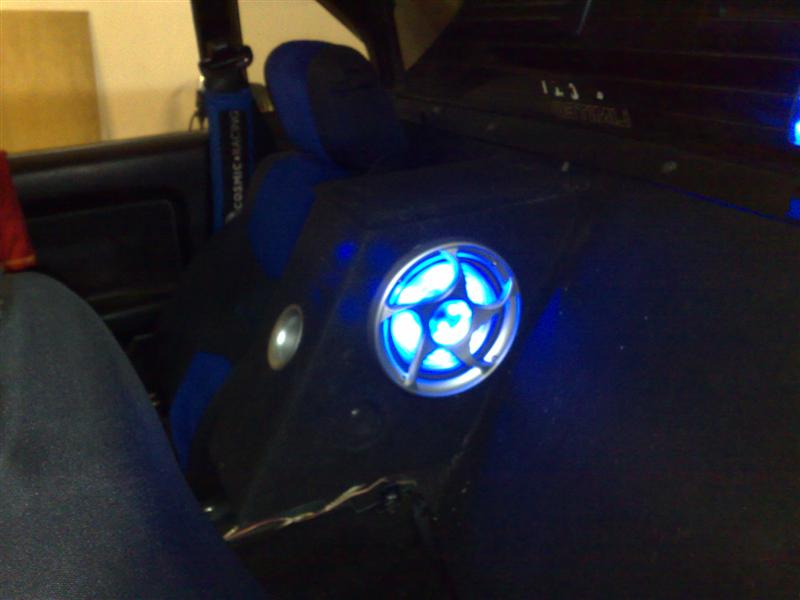

I really liked the box between the seats so I spent a couple of weekends working on this conversion of the £20 boom box I got. The MDF came out of a skip and I also got a cross-over (filter) circuit and 2 good tweeters from an old pair of Awia stereo speakers as well as some acoustic wadding. All I needed was speaker carpet and spray glue which cost about £15 all told and a bit of trial and error and effort. The speakers light up when you put the headlights on!!
They replace the pathetic rear speakers in the MR2 and have a good rich sound from a Kenwood head unit driving 4 x 50 watts output. I might put an amp in later.
http://rgwni.blogspot.com/2010/09/custom-bass-box.html
They replace the pathetic rear speakers in the MR2 and have a good rich sound from a Kenwood head unit driving 4 x 50 watts output. I might put an amp in later.
http://rgwni.blogspot.com/2010/09/custom-bass-box.html
Last edited by ulysess1966 on Sat Sep 04, 2010 10:10 pm, edited 1 time in total.
-
- Posts: 400
- Joined: Mon Feb 07, 2005 11:53 am
- Location: Rotterdam, The Netherlands
- Contact:
Re: Subwoofer MK1
Hey surferdude,
Missed the reply.
but youre right. it will be stock
only the HU is replaced
Missed the reply.
but youre right. it will be stock
only the HU is replaced
